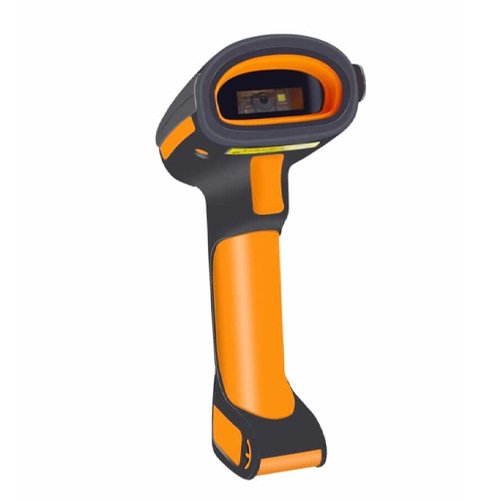

ZT-9000 Handheld Barcode Scanner

Key Features

1. Compatibility: Reads various barcode types including Micro QR, MicroPDF417, Maxicode, Aztec, and all 1D and 2D barcodes.
2. Ease of Use: Plug and play functionality, no driver needed.
3. Design: Complete dust-proof design, ergonomic for comfortable operation and reduced fatigue.
4. Screen Barcode Reading: Capable of reading barcodes from screens, such as mobile phones and computers.
5. Applications: Suitable for WeChat Pay, Alipay, and quick recognition of ID and QR codes.

Physical Characteristics

• Dimensions: 84mm x 60mm x 165mm
• Weight: 382g (including battery)
• Material: ABS + PC

Power Parameters

• Input Voltage: 5VDC
• Working Current: 300mA

Environmental Parameters

• Operating Temperature: -20°C to 50°C
• Storage Temperature: -40°C to 70°C
• Light Levels: 0 to 100,000 Lux (Daylight)
• Working Humidity: 5% to 95% (non-condensing)

Operational Parameters

• Depth of Field: 2.5cm to 35cm
• Scan Angle: 360°@ 0° Pitch and 0° Skew ±55°@ 0° Roll
• Field of View: 34° horizontal, 28° vertical
• Read Resolution: More than 4 mil
• Print Contrast: More than 25%
• Communication Modes: 2.4G, Bluetooth BLE4.0, Type B
• Communication Distance: 2.4G up to 100 meters in open air, Bluetooth more than 10 meters
• Memory Capacity: Up to 512,000 bits (approximately 35,000 EAN 13 codes)

Accessories

• Included: USB cable, manual, mini receiver

Visual Indicators

• Indicators: Blue LED light, red charge light, and buzzer
